BP06 – Consumer searches resources in data space catalogues

Default profile image
Fernando BAEZA BENJUMEA • 30 September 2026

BP06 – Consumer searches resources in data space catalogues

To help understand the content of this document, readers should familiarize themselves with the key definitions and actors.

Overview



This business process covers the situation where a data space Consumer can search resources in the catalogue of one, multiple data spaces or DOME Marketplace. Within the process the Consumer can search for resource descriptions, which can refer to data, application, or infrastructure resources. The search is characterised by two aspects: the search type, which defines how the search criteria are specified, and the search scope, which defines the catalogue or catalogues in which the search is performed.

There are two types of search available:

  • Quick search: Use one or multiple search terms that are matched against any field in the resource description.
  • Advanced search: Specify values for one or more attributes of the resource description to refine the search results.

There are three search scopes available:

  • Own catalogue search: Search the catalogue of the Consumer's own data space.
  • Federated catalogue search: Perform searches across multiple data spaces simultaneously.
  • DOME Marketplace search: Search offerings available in the DOME Marketplace.

It includes the following main steps:

  • Search in data space catalogues: The Consumer initiates a search in the data space catalogue using either a quick search or advanced search within the same, another data space (federated catalogue search) or DOME Marketplace. To achieve this, the Consumer inputs the search terms relevant to their intended search.
  • Execute query: The Governance Authority finds resource descriptions matching the provided search terms within the data space's own catalogue, DOME Marketplace or, in case of the federated search, within data space catalogues shared by other data spaces.
  • Access the filtered search results and select one or more resources: The Governance Authority provides the filtered search results to the participant's system, showing only the resource descriptions they are permitted to access. The results of the search are available to the Consumer, who can access and display the details of selected resource descriptions.

Actors

The following actors are involved:

  • Governance Authority
  • Consumer

External Entity

The following external entity is involved:

  • DOME Marketplace

Assumptions

The following assumptions are made:

  • There is a mechanism in place to perform a quality rating of the resources based on its predefined quality rules. This quality rating is not applied to offerings retrieved from the DOME Marketplace, as DOME does not provide a corresponding quality profile for its offerings.
  • Discovery of DOME offerings requires no onboarding into DOME.
  • Consumption of DOME Marketplace offerings takes place outside the scope of Simpl-Open. DOME is expected to provide sufficient information for the Consumer to contact the corresponding DOME provider.

Prerequisites

The following prerequisites must be met to enable the process to occur:

  • Dataspace is configured: The Governance Authority has configured the catalogue with the corresponding vocabulary and schemas to have the general structure of a resource description, contract clauses, and other vital components (Business Process 2).
  • Consumer onboarded: Before the Consumer can consume any resources to a data space they should have successfully completed the onboarding business process (Business Process 3A).
  • End-User authenticated & authorised: The End-User is authenticated in Simpl-Open and has the appropriate role and permissions to perform the steps in the process (Business Process 3B).
  • DOME discovery enabled: The option to search in DOME is only available if the Governance Authority has enabled the DOME Marketplace as a search scope for the data space (BP2G).

Details

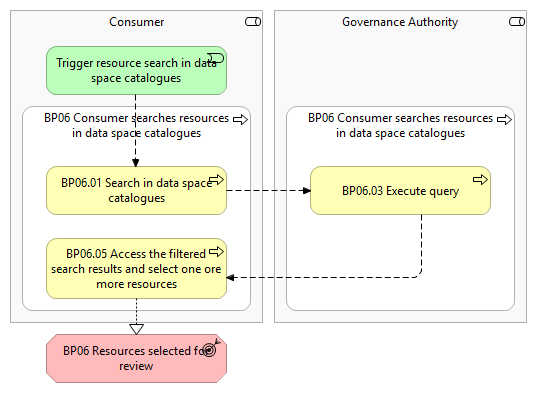

The following shows the detailed business process diagram and gives the step descriptions.




Trigger resource search in data space catalogues
The Consumer initiates the search in data space catalogues.

BP06.01 Search in data space catalogues
The Consumer initiates a search in the data space catalogue using either a quick search or an advanced search, and selects the applicable search scope: the own data space catalogue, federated catalogues of other data spaces, or the DOME Marketplace catalogue. To achieve this, the Consumer inputs the search terms relevant to their intended search and optionally a filter related to metadata quality classification. The metadata quality classification filter applies to data space resources, as DOME does not provide a corresponding quality profile for its offerings.

BP06.02 Add access policy filter parameters to the query
The query is enriched to filter on resource descriptions whose discovery access policies permit their discovery by the Consumer (and potentially the specific End-User of the Consumer from the own data space). The filtering applies for the data space's own catalogue.

BP06.03 Execute query
The Governance Authority finds resource descriptions matching the provided search terms within the data space's own catalogues.

BP06.04 Conduct a quality rating of the resources
The Consumer accesses the resource descriptions returned for the search:

  • If the Consumer has chosen to search only own catalogues of a data space, the Governance Authority provides resource descriptions only from its own catalogues to the Consumer. The results include the metadata quality of the resource.
  • If the Consumer has chosen to search only one or more federated catalogues of other data spaces, the Governance Authority provides resource descriptions only from the selected federated catalogue or catalogues to the Consumer.
  • If the Consumer has chosen to search both own and federated catalogues across data spaces, the search results from both own and federated catalogues are returned to the Consumer. The results include the metadata quality of the resource only if the resource is from an own catalogue.
  • If the Consumer has selected the DOME search scope, the search results provided by the DOME marketplace are returned.

The search results are available to the Consumer, who can access and display the details of selected resource descriptions. For results retrieved from DOME, the Consumer can access the descriptive information provided by DOME for each offering.

BP06.05 Search one or more federated catalogues of a trustor data space
The Trusted Governance Authority identifies the Trustor Governance Authorities of the selected federated catalogues, enriches the search request with the Consumer's identity attribute parameters and forwards the search request to each Trustor Governance Authorities.

BP06.06 Handle a search from a trusted data space

The Trustor Governance Authority receives a search request from a Trusted Governance Authority and maps the Consumer's identity attributes received by the Trusted Governance Authority against the agreed federated attribute mapping.

The federated search mechanism follows a single-hop federation model. Therefore, a Trustor Governance Authority does not forward the received search request to another Governance Authority or Trusted Governance Authority.

BP06.07 Add access policy filter using the mapped attributes

The query is enriched to filter on resource descriptions whose discovery access policies permit their discovery by the Consumer (and potentially the specific End-User of the Consumer) of the trusted data space (hence considering the mapped identity attributes).

BP06.08 Execute query for a Consumer of a trusted data spaces

The Trustor Governance Authority finds resource descriptions matching the provided search terms within the catalogues of the data space for a Consumer of a trusted data space.

BP06.09 Forward search results to a trusted data space

The Trustor Governance Authority provides the filtered search results to the Trusted Governance Authority that had forwarded the query.

BP06.10 Receive search results from a trustor data space

The Trusted Governance Authority receives the results for a forwarded search request from a Trustor Governance Authority.

BP06.11 Collect and provide resources

The Governance Authority collects the filtered resource descriptions from its own catalogues and from the federated catalogues across other data spaces. These resource descriptions are provided together to the Consumer that initiated the search. Where the Consumer has selected the DOME search scope, the Governance Authority also collects the offerings retrieved from the DOME Marketplace in step BP06.12 and aggregates them with the aforementioned resource descriptions.

BP06.12 Forward query to DOME Marketplace catalogue

Where the Consumer has selected the DOME search scope in step BP06.01, the Governance Authority forwards the query to the DOME Marketplace catalogue and receives the offerings that match the search criteria. Both quick and advanced search are supported.

DOME Marketplace search does not follow policy-based filtering, as all data space participants can access DOME offerings once the DOME search scope has been enabled by the Governance Authority through BP02G.

Outcome

  • Resources selected for review: The Consumer accesses and can consult the usage contract template identifying the terms and conditions related to the use of selected resource it has discovered in the data space catalogues. The Consumer then decides whether or not to consume the resource that is offered by the Provider (Business Process 8, 9A & 9B). In case a contract is required for the consumption of a resource and not already in place, the Consumer and Provider establish a usage contract (Business Process 7). Where the selected resource is an offering discovered in the DOME Marketplace, information about the offering and the provider's points of contact are provided. Contracting, provisioning and consumption of that DOME offering take place directly between the Consumer and the DOME provider, outside the data space.



Business ProcessStatus: Proposed



High Level Requirements

  • 6.1 -  A Consumer searches resources in the catalogues of a data space
    Simpl shall allow a Consumer to search ...

    See more details

  • 6.2 - A Governance Authority provides resource descriptions matching a search request from own catalogues
    Simpl-Open shall support a Governance Authority ...

  • See more details

  • 6.3 - A Trustor Governance Authority receives a search request from a trusted data space
    Simpl-Open shall support a Governance Authority ...

    See more details

  • 6.4 - A Trustor Governance Authority provides the results for a search request to a trusted data space
    Simpl-Open shall support a Trustor Governance  ...

    See more details

  • 6.5 - A Trusted Governance Authority forwards a search request to a federated data space

    Simp-Open shall support a Trusted Governance Authority...

    See more details

  • 6.6 - A Governance Authority provides resources

    Simp-Open shall support the Governance Authority...

    See more details

  • 6.7 - A Consumer consults the returned resources of a search request

    Simpl-Open shall allow a Consumer to consult...

    See more details

  • 6.8 - The Consumer selects the DOME Marketplace catalogue as a search scope

    Simpl-Open shall enable the Consumer to include...

    See more details

  • 6.9 - The Governance Authority forwards the query of the Consumer on the DOME Marketplace catalogue

    Simpl-Open shall support the Governance Authority in forwarding...

    See more details

  • 6.10 - The Governance Authority aggregates DOME Marketplace offerings with the other search results

    Simpl-Open shall support the Governance Authority in aggregating...

    See more details
